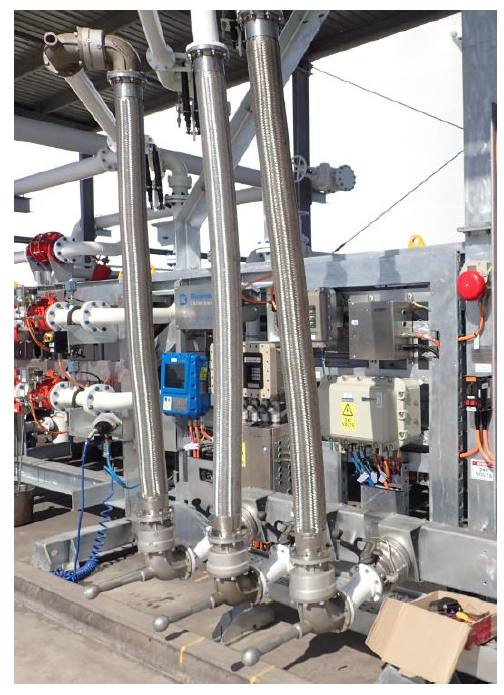

Introducing DKI's Very Own Bottom Loading Arm.

FEATURES
- Meets API Apron requirements for up to 6 arms in one bay. No need to move tankers.
- Single-length Drop Hose for all arms- reducing site spares inventory.
- No need to disassemble the balance mechanism to change from left to right-hand operation.
- Dual Gas Strut balance mechanism for safe, smooth easy operator use - avoids back injuries.
- Balance Swivel bearings are sealed giving long useable life with minimal maintenance - just inspect once per year.
- Balance Swivels are split flanged for ease of maintenance and replacement of seals. If required, Product seals can be replaced without removing bearings, therefore, significantly reducing downtime.
- Up-down balance tuning is simple, safe and easy to adjust.
- An adjustable vertical stop provides additional over travel protection to the arm, maximising gas strut life.
- Dry Brake Coupler seals can be changed without removing the Coupler from the loading arm.
- The Dry Break Coupler has a 5 cam design for safe, easy alignment with tight fit connection to tanker truck whilst loading.
- Industry Standard Forged Fittings complying with ASME / ANSI Standards
- Welding compliance to ASME B31.3

For further enquires kindly contact 03 9730 8888 or email us at: Sales@diamondkey.com
